3NM SOLAR BUOY LIGHT

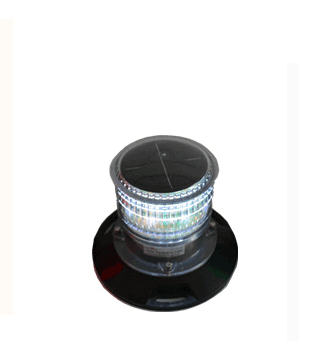

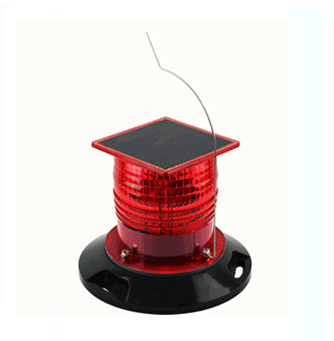

DWS302TS is a solar marine navigation light that has become one of the most popular solar self-contained buoy warning light in the world because of its concise, reliability, easy-operation and robustness. Its visibility is up to 3NM and waterproof level is IP67 with a Touch Switch. It has widely been used for Marine Marker, Buoy Warning, Ocean Engineering, Port marking etc..







Features and benefits







Flashing and its visibility up to 3NM


Available in blue, red, amber, white and green.


Solar panel 1.5Wp, replaceable Ni-HM battery 4.8Ah.


Turns on at dusk and off at dawn automatically.


Completely self-contained and waterproof IP67.


Charge under nearly all weather conditions and up to 140 hours of operating capacity from a full charge.


Individual dome can protest the solar panel and raise its efficiency.


Lens is polycarbonate with anti-UV which is produced by Bayer.


Manufactured to ISO9001:2015 QAS and certified CE.

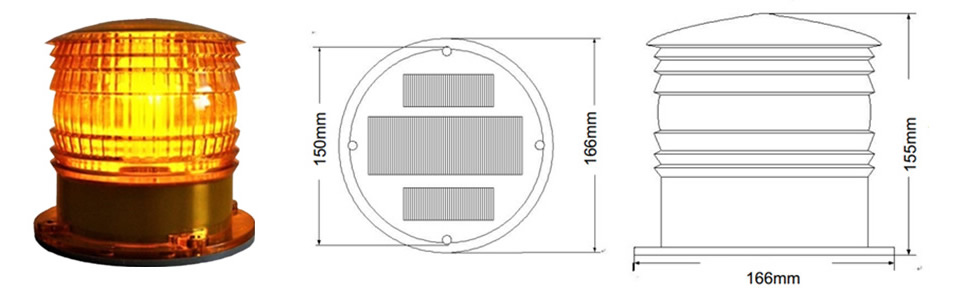

SPECIFICATIONS







SPECIFICATIONS

Light Output

STEADY ON (DWS301)

FLASHING (DWS302TS)

Average Intensity

White

26cd

41cd



Red

24cd

32cd



Amber

20cd

27cd



Green

25cd

39cd



Blue

12cd

16cd

Visibility

2NM

3NM

Horizontal Output

360°

LED

6Pcs

16Pcs

Operation

Minimum Autonomy

70hrs

140hrs

Latitude Range

55°S  to  55°N

On/Off Level

60/100 Lux

Lifespan of LEDS

up to 100,000 Hours

Solar panels

Mono-crystalline;Maximum Power 1.5Wp;Efficiency 20%

Battery

Ni-Mh , replaceable;4.8Ah

Construction

Lens Material

Polycarbonate

Colored Lens Option

red,green,amber,white,blue

Mounting Option

4 bolts  or   Magnetic base

Weight

0.9kg

Environment

Temperature Range

-40℃ to +80℃

Waterproof

IP67

Quality control and Patents

Quality Assurance

ISO9001:2015

CE

CTR090817073E

Patents

 0222444.1 and ZL201430444455.3

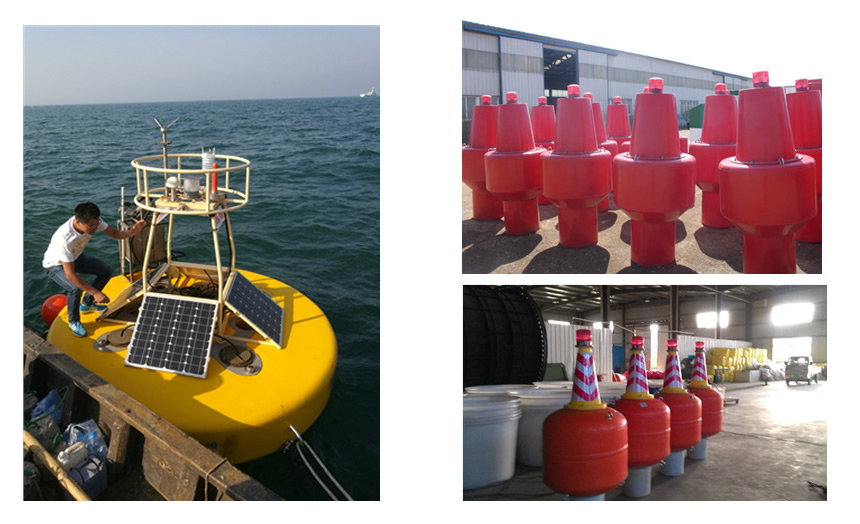

Typical Applications







  Buoy Marking   Beacon Lighting   Ocean Engineering   Aqua Marking









Other Relative Products







DWS703

7-10NM Solar Marine Navigation light

DWS503

4-5NM Solar Marine light

DWS303

2-3NM Solar Marine light







Accessories

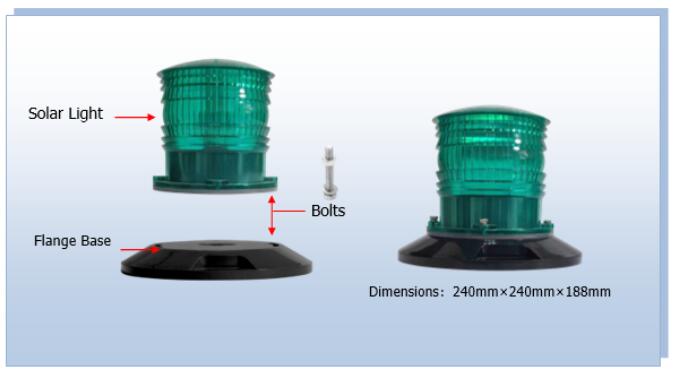

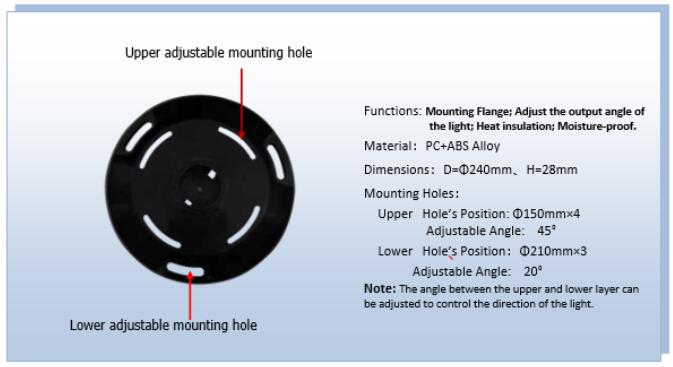

Installing Adapter——FlangeBase







Certifications









ISO9001:2015
CE







FAQ







1.What is the difference of IP67 and IP68?


For solar lights,IP67 is the same as IP68.There are three reasons as follows:
• IP means Ingress Protection. The international safety standard for IP is IEC60529.IP codes have the format IP××, where the ×× represent numerals from the coding scheme(see Table 1 and Table 2);



Numeral

Characterization of Ingress Limit

0 or X

Not evaluated

1

≥50.0 mm diameter object

2

≥12.5 mm diameter object

3

≥2.5 mm diameter object

4

≥1.0 mm diameter object

5

Dust-protected

6

Dust-tight

Table I.The first numeral in an IP code indicates the degree of protection from solid foreign objects.





Numeral

Characterization of Ingress Limit

0 or X

Not evaluated

1

Dripping water:vertical

2

Dripping water:15°tilt

3

Spraying water

4

Splashing water

5

Jetting water

6

Powerful jetting water

7

Temporary immersion

8

Continuous immersion

Table II.The second numeral in an IP code indicates the degree of protection from moisture.



• In all practical applications, it is impossible for a solar light to immerse under water for long time because it couldn’t be charged in such case. So IP68 for solar lights is nonsense.
• The IP68 expression in a solar light only be speculation gimmicks and attempts to mislead users.

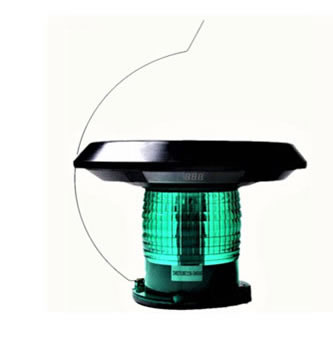

2. Under what circumstances DWS302 with a touch switch  should be chosen?
In order to ensure reliable waterproof, we strongly recommend you to choose DWS302 with a touch switch in Marine Applications such as Buoy, Aqua Cage, Seaport, Ocean Engineering etc..



3.Can the remote control be achieved for solar lights?
Yes, these lights can be controlled to turn on/off and adjust the intensity by a wireless controller .
